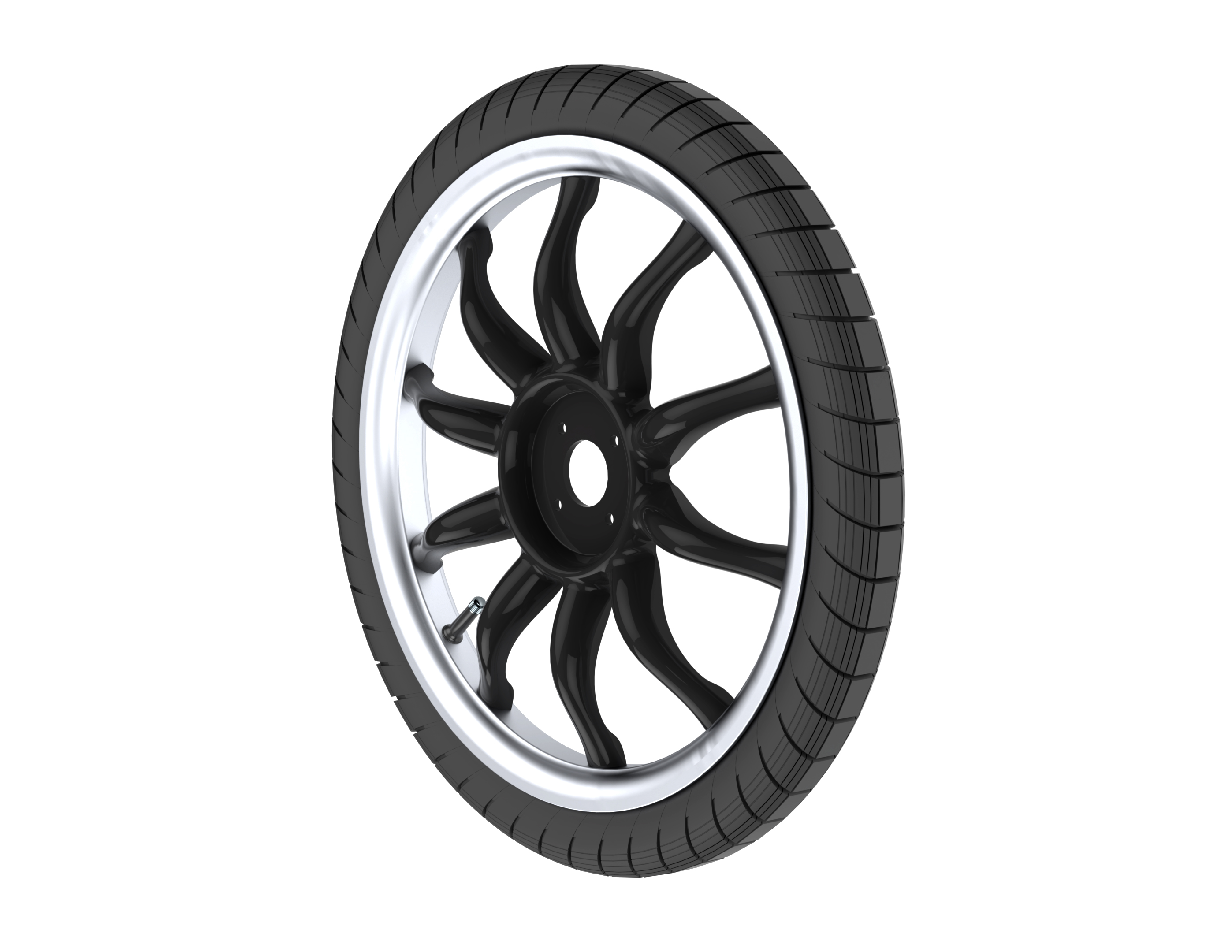

CBW1 Hybrid
CBW1 Hybird
Maximum static axial load per wheel 100kg.
Maximum tire pressure 5 bar for a 37 mm tire
Weight 1600 gram
Dimensions ETRTO 36-406
An ETRTO 50-406 version will be made available soon.
Maximum static axial load per wheel 100kg.
The spokes are strong but more flexible than in CBW1. In combination with the Aluminum alloy this wheel is very resilient to impact. To impact from potholes and curbs for example.
It features an automotive style hub fixation with 5 or 10 bolts at a 60 mm pitch circle. This allows you, to use standard parts in cargo bike design. We expect this to become the new standard for heavy cargo bike wheels.
Step File for fitting in your design

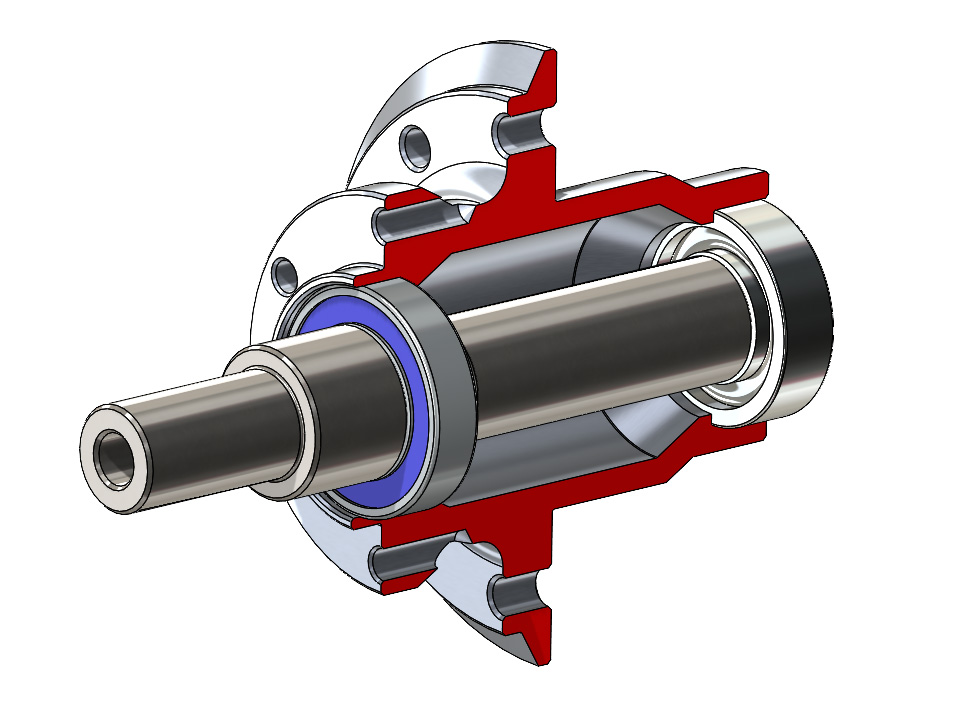

Axle and hub for CBW1 hybrid
New (available soon)
Step File for fitting in your design
