With the expansion of online shopping lots of delivery vans came to our doorstep.
Delivery vans that clog up many of our cities and contribute to carbon emission and pollution.
So, it is a really good thing that many companies and start-ups are developing alternative based on bicycle technology.
Most of these innovative vehicles are targeting the “last mile” delivery. Taking the parcels into the city.

cargo bikes

Cargo bikes are obviously heavier than ordinary bicycles.

With the higher weight come not only much higher, but also quite different loads on the wheels.

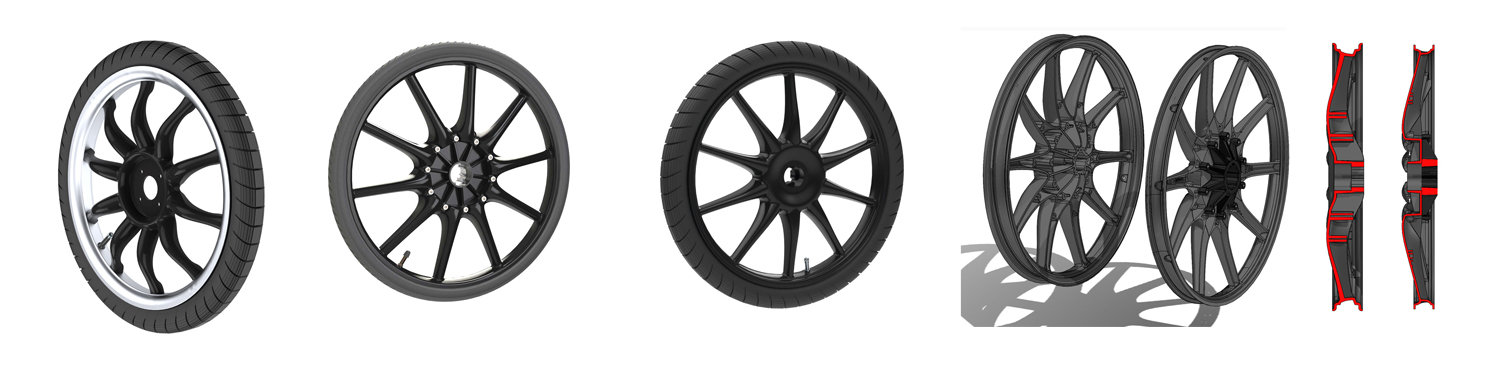

These loads create problems for standard bicycle wheels. Alligt offers high quality wheels specially designed for cargo bikes.

High quality production in two steps

Mould

Injection moulding

The wheels are injection moulded in high strength fibre reinforced polyamide.

CNC machining
Then some high precision machining is done. To ensure the best possible material orientation and accuracy, some product details are not included in the mould. They are machined afterwards.
Machining also allows us to offer different versions of the wheel.



Proven in practice.

Alligt, in cooperation with Boldesign, has developed four 406 mm, (20” bicycle or 16" moped) wheels.  Great care was taken optimising the design for strength stiffness and weight, selecting the best possible material and finally optimising the production process.
They have become the wheel of choice for many professional cargo bike manufacturers.

Norms and testing

Alligt has been member of the CEN/TC 333/WG 9 (European cargo bike) committee in 2020 and 2021. Alligt uses a test machine according to the German EN 79010 Cargo bike norm

Ramp test


Alligt has performed a lot of tests rolling down a 450kg Golo down a ramp at 15 km/h onto a stone curb that was embedded in a large block of concrete.
This test was done to test the influence of mishandling the wheels.
Both CBW1 and CBW2 were tested. Both with and without suspension in the vehicle.
The test clearly showed that having a suspension is a good way to avoid curb hitting damage.



Ramp test



video

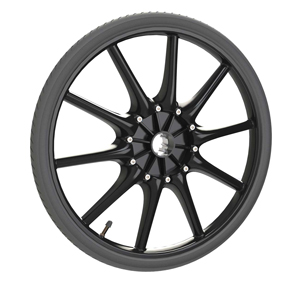

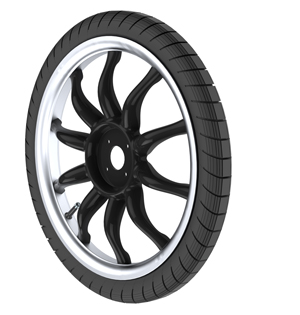

Alligt Cargo bike wheel CBW1

Alligt CBW1

Dimensions ETRTO 27-406
Maximum static axial load 75kg.
Maximum tire pressure 5 bar for a 47 mm tire



From left to right:

Alligt cargo bike wheel
1 The CBW1 wheel injection moulded
2 CBW1A The sprue removed + Centre hole machinend to size + The valve hole drilled.
3 CBW1B Entire Centre removed + The valve hole drilled.



CBW1A with spider

Alligt CBW1A with spider

Dimensions ETRTO 27-406
Maximum static axial load 75kg.
Maximum tire pressure 5 bar for a 47 mm tire
Weight 905 grams



PDF 2D drawing PDF

Step file Step File for fitting in your design





CBW1B

CBW1B

Downloads CBW1B

Dimensions ETRTO 27-406
Maximum static axial load 75kg.
Maximum tire pressure 5 bar for a 47 mm tire
Weight 815 grams



PDF 2D drawing PDF

Step file Step File for fitting in your design

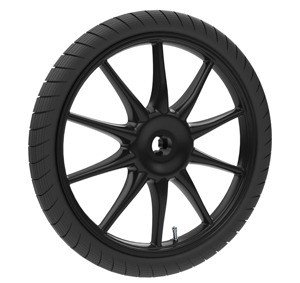

Alligt Cargo bike wheel CBW2A

Allight CBW2

Alligt CBW2

Dimensions ETRTO 35-406
Maximum static axial load 150kg.
Weight 1580 grams
Maximum tire pressure 5 bar for a 50 mm tire

PDF 2D drawing PDF

Step file Step File for fitting in your design

The main features

Compared to the CBW1 wheel The CBW2 wheel has a wider rim, a bigger wall thickness and an integrated centre hub fixation.

The rim edge is rounded in automotive style to make hard bumps easier on the tire.

The commonly used high tire pressure creates a permanent stress in the rim material. This results in material creep.
The rim of the CBW2 wheel has an increased wall thickness.
The expected lifetime using a 47 mm wide tire at 5 bar is more than 10 years compared to 3 to 5 years for the CBW1 wheel.
Reducing tire pressure while not in use increases life span.

In the CBW2 wheel the tire pressure induced material stress in the rim is reduced from 80 to just 60 N/mm2. As the graph illustrates, this results in a much longer life span. The trade-off, of course is a slightly heavier wheel. All our cargo bike wheels are produced in the Netherlands using high quality material from a European manufacturer.

creep curves











CBW2 compared to CBW1
CBW2 vs CBW1

The main differences: CBW2 has a wider rim, a greater wall thickness and the centre hub fixation is integrated.



Alligt Cargo bike wheel CBW3



CBW3





Developed to be used in combination with Grin motor

Dimensions ETRTO 35- 406
Expected maximum axial load 125 kg.
Maximum tire pressure 5 bar for a 47 mm tire

Production of the Grin All Axle Hub Motor, with Cargo Wheel Preview

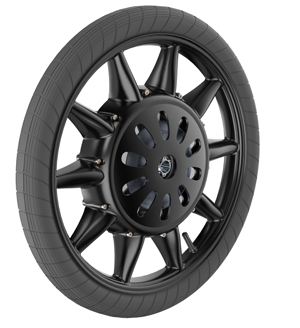

Also available as CBW3A with a closed hub.

CBW3A



Suitable for Grin hub motor

PDF 2D drawing PDF

Step file Step File for fitting in your design

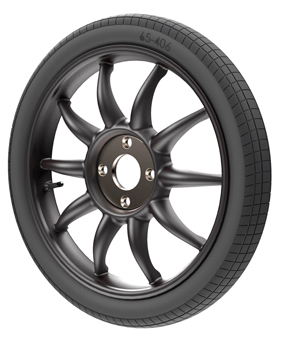

Alligt Cargo bike wheel CBW5

New product: Avaliable summer 2023

CBW5

This wheel is developed for 500kg+ cargo bikes.

The CBW5 offers a range of interesting features:
First of all it is a ETRTO 50-406. It offers a 50 mm rim that is also suitable for 16” moped bikes. These 16" tires seem better suited for cargo bikes. Several customers are already using these on our current  wheels. The CBW5 is also compatible with some 406 bicycle tires. The spokes are strong but more flexible than in CBW2 and CBW3. This makes the wheel more resilient to impact. Like impact from potholes and curbs. Still for best reliability is suspension and a thick tire with max. 3 bar air-pressure is recommended.

CBW5

It features an automotive style hub fixation with 4 bolts at a 100 mm pitch circle. This allows you, to use standard parts in cargo bike design. We expect this to become the new standard for heavy cargo bike wheels.

PDF 2D drawing PDF

Step file Step File for fitting in your design



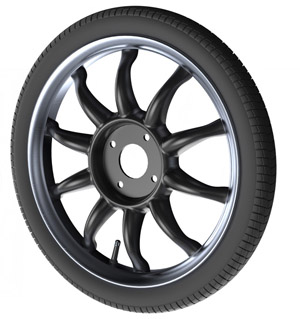

Alligt Cargo bike wheel CBW5 Hybrid

New product: Avaliable summer 2023





CBW % Hybird



The same strong spokes, combined with a sturdy aluminium rim. ETRTO 35-406
